Electric Catamaran Chill-Boat Trio
Premiere 08.2013

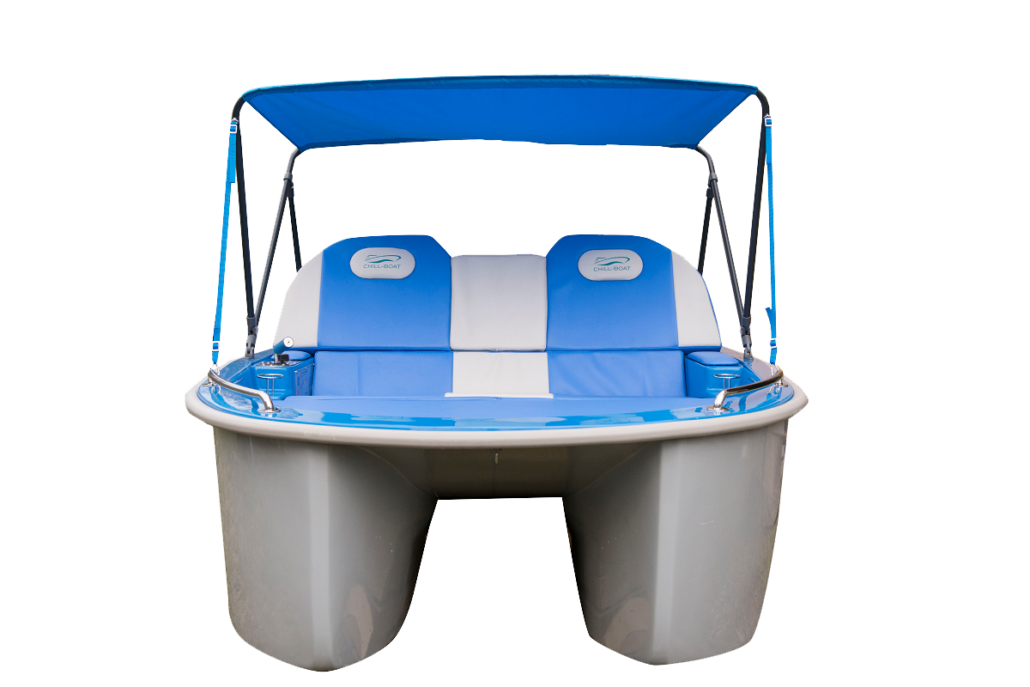

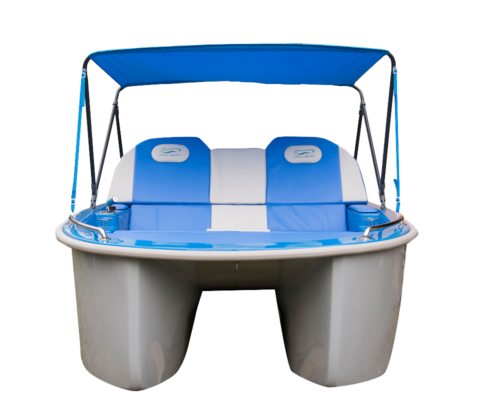

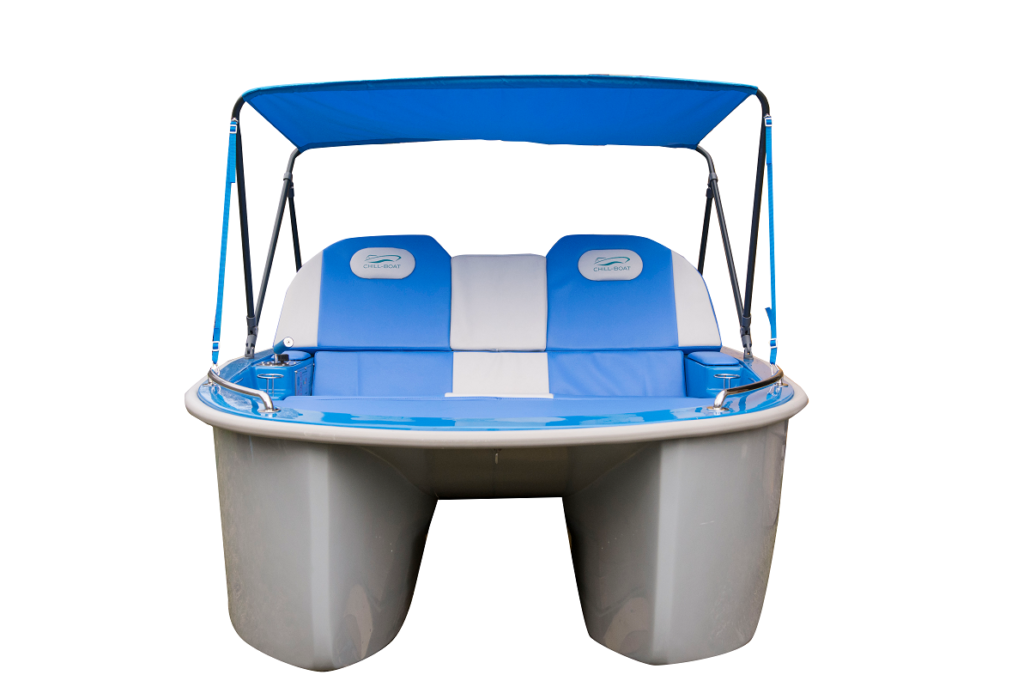

Recreational Electric Catamaran Chill-Boat Trio is a realization of our conceptual project.
The Electric Catamaran can be comfortably and safely used by three people.
Intuitive steering, a comfortable sofa and ecological drive are the basic advantages of the Chill-Boat Trio, and the rich equipment in the basic version increases the attractiveness of this unit.
Chill-Boats Trio are dedicated to hotels, guesthouses and water sports centers, where
they can be an alternative to traditional water bikes. Many people buy our boats
exclusively for their own use, which perfectly complements their leisure activities.
The choice of equipment and colours is the responsibility of our customers.
Technical data
| Category | D |
| Hull | cathedral, catamaran type with displacement chambers |
| Length | 2370 mm. |
| Width | 1690 mm. |
| Height | 550 mm. |
| bearing capacity | 320 kg |
| Crew | 1- 3 persons |
| Net weight | 120 kg. |
| Immersion | 20 cm (without motor protecting skid) |
| Electric motor | 40 Lbs 12 V 520W or 55 Lbs 660W (optional) |
| speed | approx. 2,5, 3,5 sea knot for 40/55 LBS engines respectively |
| Power supply | battery marine 1 x 100 Ah 12 V or 2 x 100 Ah 12 V (optional) |
Basic equipment:
- electric motor 40 lbs 520 W 12 V
- Gel Deep Cycle 100 Ah 12V battery 1 pc.
- fuse protecting the motor after blocking
- UV resistant eco-leather upholstery
- bimini top (waterproof canvas)
- bilge pump
- skid protecting the engine column
- Battery Control System – LED and audible indicator of battery charge status monitoring
- wheels facilitating slipping of the boat (full tyre) mounted on the skids protecting the engine
- engraved decorative indicator plate of the battery control indicator made of ground stainless steel
- engraved decorative plate of the steering handle made of ground stainless steel
- beverage holders – 2 pcs. (polished stainless steel)
- two main rails, 50 cm length (polished stainless steel)
- cleats – 2 pcs. (polished stainless steel)
- mooring handle on the bow of the boat (stainless steel)
- large locker located in the bonnet
- bonnet closing (kandahar) – 2 pcs. (stainless steel)
- eye handles for bimini cables – 2 pcs. (stainless steel)
- automatic battery charger
- socket for charger connection max. 32 A
- additional USB port
- paddle
Optional equipment:
- 55 lbs engine (2 x 100 Ah battery pack)
- Gel Deep Cycle 100 Ah 12V battery
- LiFePO4 12V 100Ah battery
- isothermal locker (fridge) installed on the boat deck
- mp3 audio set with two speakers
- GPS locator
- safety vest
- mooring line 5mb.
- solar panel system
